Generating a Gene Expression Matrix

Bioinformatic analyses has two stages: data reduction followed by data analysis.

Data analyses of scRNA-seq data take as their starting point an expression matrix, where each row represents a gene and each column represents a sample (in scRNA-Seq columns are cells). Each entry in the matrix represents the number of reads (proxy for expression level) of a particular gene in a given sample (cell). Generating the expression matrix, data reduction, often involves some, or all, of the following.

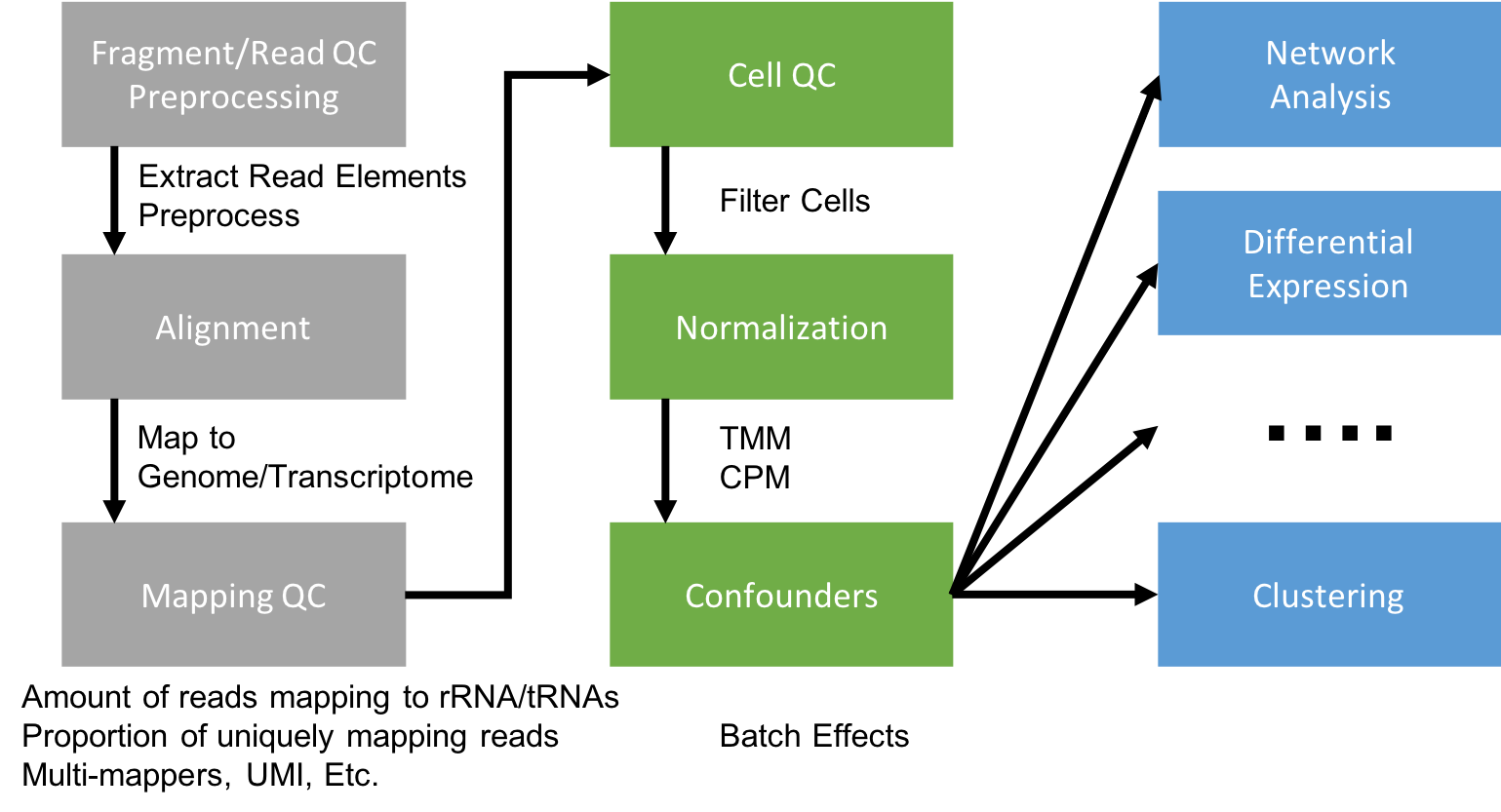

Flowchart of scRNA-Seq analysis

Because we are working with 10x Genomics data in this workshop, The 10x Cell Ranger application was used to handle the first column worth of steps (data reduction tasks).

Preprocessing and Mapping Reads to a Genome

Raw fastq files first need to be preprocessed, extracting any elements that are a part of the sequence read and potentially “cleaned” with applications such as HTStream.

• Library Barcode (library Index) - Used to pool multiple libraries onto one sequencing lane
• Cell Barcode – Used to identify the cell the read came from
• Unique Molecular Index (UMI) – Used to identify duplicate reads that arise during PCR replication
• Sequencing Read – Used to identify the gene a read came from

Post preprocessing, the remaining sequences are mapped to a reference genome/trancriptome. 10x Genomics and Parse Biosciences both maintain custom preprocessing and alignment pipelines fine-tuned for their technologies. 10x’s Cell Ranger is based on the STAR aligner. Another good choice is a pseudo-alignment method (e.g. Kallisto, Salmon). For full-length datasets with tens- or hundreds of thousands of reads per cell pseudo-aligners become appealing since their run-time can be several orders of magnitude less than traditional aligners.

Mapping QC

After aligning sequence data to the genome we should evaluate the quality of the mapping. There are many ways to measure the mapping quality, including: percentage mapped, amount of reads which map to rRNA/tRNAs, proportion of UMIproportion of uniquely mapped reads, reads mapping across splice junctions, read depth along the transcripts, etc. Methods developed for bulk RNAseq, such as RSeQC and samtools, are applicable to single-cell data.

Gene Counting

STAR (and by extension, Cell Ranger), Kallisto, and Salmon all quantify the expression level of each gene for each cell as a part of its output. If UMIs were used, duplicates need to be first marked and then gene expression levels recounted. The package UMI-tools can be used to process and correct UMIs. The Parse Bioscience pipeline and Cell Ranger handle UMI deduplication and cell barcode assignment internally, producing an expression matrix that is ready for analysis.

Specific steps to be performed are dependent on the type of library, the element layout of the read, and the sequencing parameters.

STAR, Salmon, Kallisto/bustools each have pipelines build specifically for processing single-cell datasets.

scRNA-Seq Libraries

Generating scRNA-Seq libraries contiues to be an active area of research with several protocols being published in the last decade, including:

The First Decade of scRNA-Seq Protocols

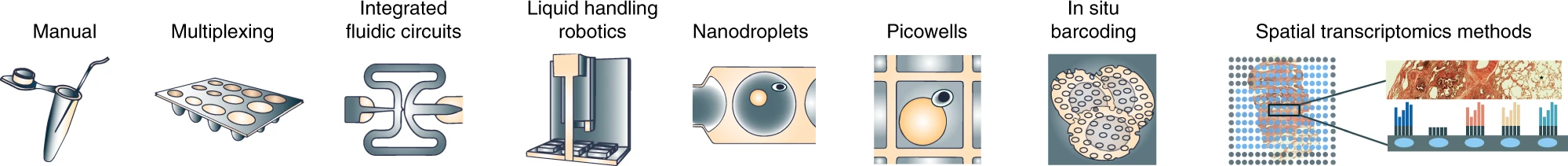

Current State of scRNA-Seq Protocols

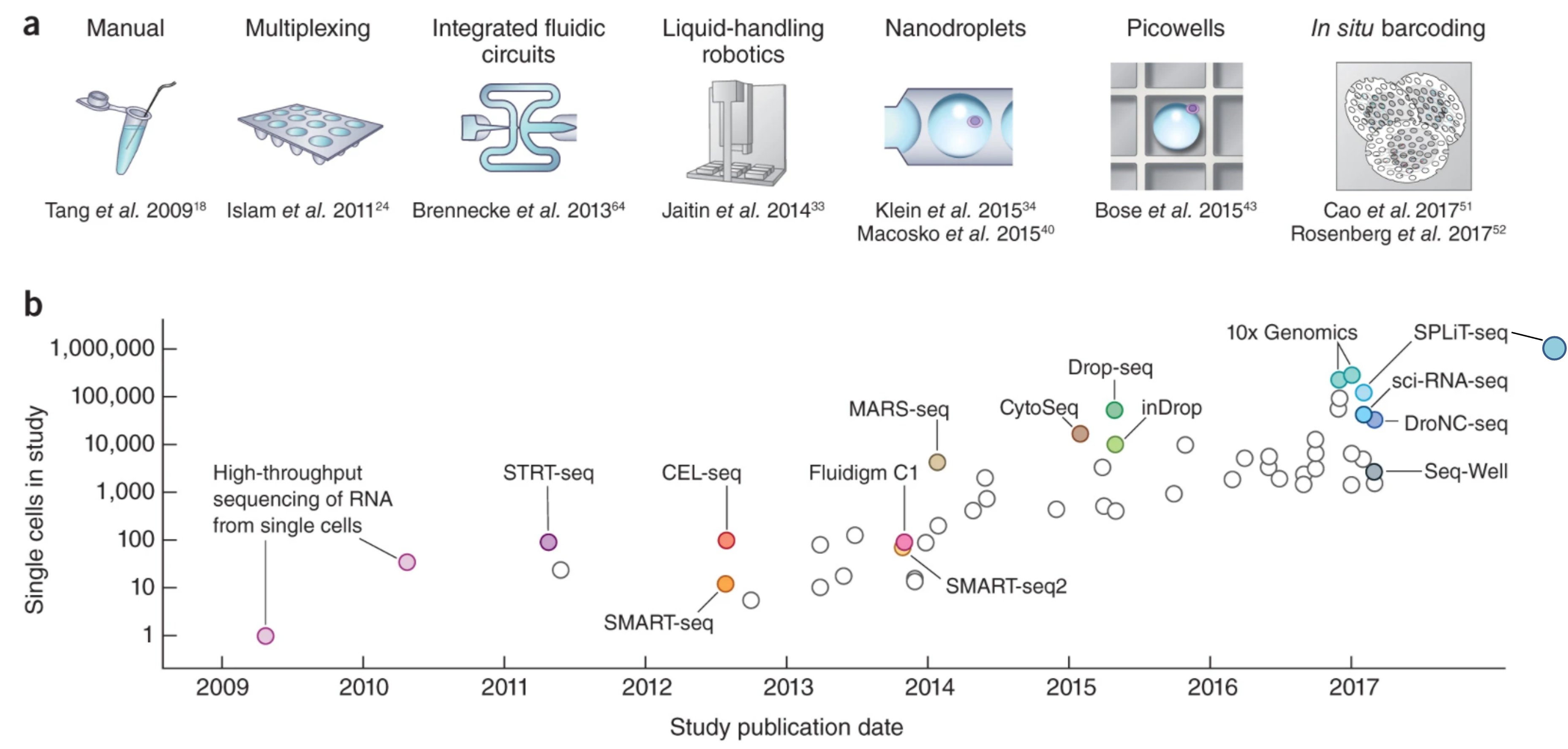

Svensson, etc., 2018, Nature Protocols https://www.nature.com/articles/nprot.2017.149 Aldridge & Teichmann, 2020, Nature Communications https://www.nature.com/articles/s41467-020-18158-5

• CEL-seq, Hashimshony, 2012
• CEL-seq2, Hashimshony, 2016
• DroNC-seq, Habib, 2017
• Drop-seq, Macosko, 2015
• InDrop-seq, Klein, 2015
• MATQ-seq, Sheng, 2017_2018
• MARS-seq, Jaitin, 2014
• SCRB-seq, Soumillon, 2014
• Seq-well, Gierahn, 2017
• Smart-seq, Picelli, 2014
• Smart-seq2, Picelli, 2014
• SMARTer clontech
• STRT-seq, Islam, 2014
• SplitSeq, 2018 (now Parse Biosciences)
• Smart-seq3, Hagemann-Jensen, 2020
• Smart-seq-total, Isakova, 2021
• VASA-seq, Salmen, 2022

Methods differ in how they capture a cell and quantify gene expression (either full-length or tag-based , whole-cell or nucleus).

Full-length capture tries to achieve a uniform coverage of each transcript (many reads per transcript). Tag-based protocols only capture either the 5’- or 3’-end of each transcript (single read per transcript). Choice in method determines what types of analyses the data can be used for. Full-length capture can be used to distinguish different iso-forms, where tag-based method is best used for only gene abundance.

• Tag-based 3’ counting techniques
  • 1 read per transcript
  • Based on polyA
  • Expression analysis only
  • Fewer reads per cell needed (~20K reads/cell 10x V3+)
  • Less noise in expression patterns
• Full-length
  • Based on polyA
  • Expression analysis
  • Splicing information
  • The more information desired beyond expression, the higher the reads needed per cell (~50K reads/cell to 10M reads/cell)

Long read sequencing

New Long read protocols have recently become available: PacBio Kinnex single-cell RNA kit and ONT platforms Ligation sequencing kit. These kits and application open up a whole new dimension to single cell analysis making transcript identification possible.

Software

For smaller experiments < 5000 cells, the R packages SingleCellExperiment, scater, SC3 are good choices. For larger experiments (> 5000 cells), the R package Seurat offers a more complete solution.

If you prefer Python, scanpy is a good choice.

A nice starting point to learn about single-cell software can be found here.

10X Genomics generation of expression matrix with cellranger

10X Genomics Cell Ranger uses a fork of the STAR aligner, Orbit, to map reads to a genome after first preprocessing them (extracting cell and UMI sequences).

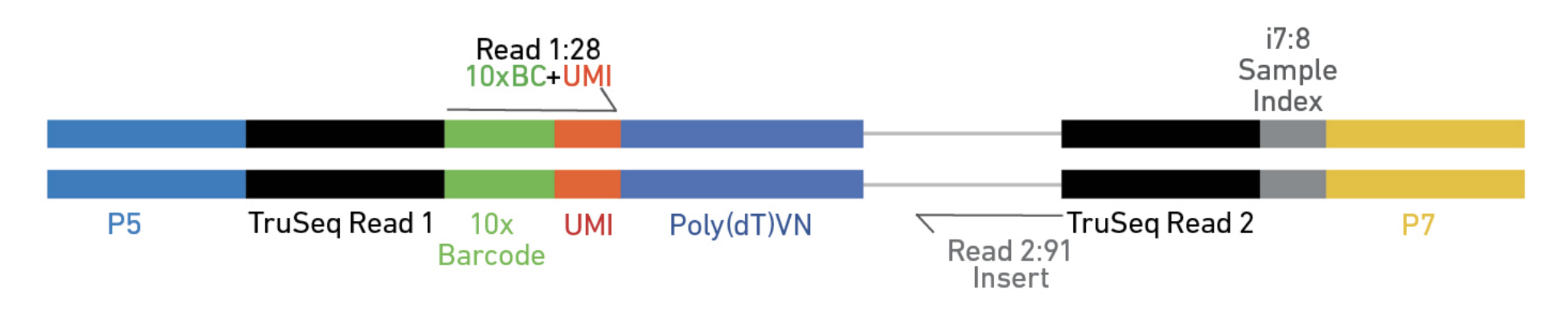

Elements to a 10x read (V3)

cellranger cellranger-8.0.1

Process 10x Genomics Gene Expression, Feature Barcode, and Immune Profiling data

Usage: cellranger

Commands:

• count Count gene expression and/or feature barcode reads from a single sample and GEM well
• multi Analyze multiplexed data or combined gene expression/immune profiling/feature barcode data
• multi-template Providees template shows the possible cellranger multi config CSV options
• vdj Assembles single-cell VDJ receptor sequences from 10x Immune Profiling libraries
• aggr Aggregate data from multiple Cell Ranger runs
• reanalyze Re-run secondary analysis (dimensionality reduction, clustering, etc)
• mkvdjref Prepare a reference for use with CellRanger VDJ
• mkfastq Run Illumina demultiplexer on sample sheets that contain 10x-specific sample index sets
• testrun Execute the ‘count’ pipeline on a small test dataset
• mat2csv Convert a feature-barcode matrix to CSV format
• mkref Prepare a reference for use with 10x analysis software. Requires a GTF and FASTA
• mkgtf Filter a GTF file by attribute prior to creating a 10x reference
• upload Upload analysis logs to 10x Genomics support
• sitecheck Collect Linux system configuration information
• help Print this message or the help of the given subcommand(s)

In this workshop, we will only consider the use of the count sub-application.

Review the cellranger-counts.sh script used to map reads in the fastq files.

Cell Ranger likes all the Raw Data fastq files, that are associated with a single library together under their own folder.

Cell barcode and UMI filtering

• Cell barcodes
  • Must be on static list of known cell barcode sequences
  • May be 1 mismatch away from the list if the mismatch occurs at a low- quality position (the barcode is then corrected).
• UMIs (Unique Molecular Index)
  • Must not be a homopolymer, e.g. AAAAAAAAAA
  • Must not contain N
  • Must not contain bases with base quality < 10
  • UMIs that are 1 mismatch away from a higher-count UMI are corrected to that UMI if they share a cell barcode and gene.

Read Trimming

Cell Ranger only performs read trimming to 3’ gene expression assays.

A full length cDNA construct is flanked by the 30 bp template switch oligo (TSO) sequence, AAGCAGTGGTATCAACGCAGAGTACATGGG, on the 5’ end and poly-A on the 3’ end. Some fraction of sequencing reads are expected to contain either or both of these sequences, depending on the fragment size distribution of the sequencing library. Reads derived from short RNA molecules are more likely to contain either or both TSO and poly-A sequence than longer RNA molecules.

In order to improve mapping, the TSO sequence is trimmed from the 5’ end of read 2 and poly-A is trimmed from the 3’ end prior to alignment.

Tags ts:i and pa:i in the output BAM files indicate the number of TSO nucleotides trimmed from the 5’ end of read 2 and the number of poly-A nucleotides trimmed from the 3’ end, respectively. The trimmed bases are present in the sequence of the BAM record and are soft clipped in the CIGAR string.

Alignment

Genome Alignment

Cell Ranger uses an aligner called Orbit (a wrapper around STAR), which performs splicing-aware alignment of reads to the genome. Cell Ranger uses the transcript annotation GTF to assign the reads to exonic, intronic, and intergenic categories, and by whether the reads align (confidently) to the genome. A read is exonic if at least 50% of it intersects an exon, intronic if it is non-exonic and intersects an intron, and intergenic otherwise.

MAPQ adjustment

For reads that align to a single exonic locus but also align to 1 or more non-exonic loci, the exonic locus is prioritized and the read is considered to be confidently mapped to the exonic locus with MAPQ 255.

Transcriptome Alignment

Cell Ranger further aligns exonic reads to annotated transcripts, looking for compatibility. A read that is compatible with the exons of an annotated transcript, and aligned to the same strand, is considered mapped to the transcriptome. If the read is compatible with a single gene annotation, it is considered uniquely (confidently) mapped to the transcriptome. Only reads that are confidently mapped to the transcriptome are used for UMI counting.

In certain cases, such as when the input to the assay consists of nuclei, there may be high levels of intronic reads generated by unspliced transcripts. In order to count these intronic reads, the cellranger count and cellranger multi pipelines can be run with the option ‘include-introns’ in versions 5.0-6.1. Starting from version 7.0, cellranger count includes the intronic reads in quantification of gene expression by default, but can be turned off by setting include-introns to false. The same applies to cellranger multi pipeline. Counts produced with and without intronic reads are likely to differ more in single nucleus assays than in single cell assays due to an enrichment of un-spliced transcripts within the nuclear envelope.

UMI Counting

• Using only the confidently mapped reads with valid barcodes and UMIs,
  • Correct the UMIs UMIs are corrected to more abundant UMIs that are one mismatch away in sequence (hamming distance = 1).
  • Record which reads are duplicates of the same RNA molecule (PCR duplicates)
  • Count only the unique UMIs as unique RNA molecules
  • These UMI counts form an unfiltered gene-barcode matrix.

/LRTI-WRK1_GXP
    _filelist
    _finalstate
    _invocation
    _jobmode
    _log
    LRTI-224_GXP.mri.tgz
    _mrosource
    outs/
    ├── analysis
    │   ├── clustering
    │   │   ├── gene_expression_graphclust
    │   │   │   └── clusters.csv
    │   │   ├── gene_expression_kmeans_10_clusters
    │   │   │   └── clusters.csv
    │   │   ├── gene_expression_kmeans_2_clusters
    │   │   │   └── clusters.csv
    │   │   ├── gene_expression_kmeans_3_clusters
    │   │   │   └── clusters.csv
    │   │   ├── gene_expression_kmeans_4_clusters
    │   │   │   └── clusters.csv
    │   │   ├── gene_expression_kmeans_5_clusters
    │   │   │   └── clusters.csv
    │   │   ├── gene_expression_kmeans_6_clusters
    │   │   │   └── clusters.csv
    │   │   ├── gene_expression_kmeans_7_clusters
    │   │   │   └── clusters.csv
    │   │   ├── gene_expression_kmeans_8_clusters
    │   │   │   └── clusters.csv
    │   │   └── gene_expression_kmeans_9_clusters
    │   │       └── clusters.csv
    │   ├── diffexp
    │   │   ├── gene_expression_graphclust
    │   │   │   └── differential_expression.csv
    │   │   ├── gene_expression_kmeans_10_clusters
    │   │   │   └── differential_expression.csv
    │   │   ├── gene_expression_kmeans_2_clusters
    │   │   │   └── differential_expression.csv
    │   │   ├── gene_expression_kmeans_3_clusters
    │   │   │   └── differential_expression.csv
    │   │   ├── gene_expression_kmeans_4_clusters
    │   │   │   └── differential_expression.csv
    │   │   ├── gene_expression_kmeans_5_clusters
    │   │   │   └── differential_expression.csv
    │   │   ├── gene_expression_kmeans_6_clusters
    │   │   │   └── differential_expression.csv
    │   │   ├── gene_expression_kmeans_7_clusters
    │   │   │   └── differential_expression.csv
    │   │   ├── gene_expression_kmeans_8_clusters
    │   │   │   └── differential_expression.csv
    │   │   └── gene_expression_kmeans_9_clusters
    │   │       └── differential_expression.csv
    │   ├── pca
    │   │   └── gene_expression_10_components
    │   │       ├── components.csv
    │   │       ├── dispersion.csv
    │   │       ├── features_selected.csv
    │   │       ├── projection.csv
    │   │       └── variance.csv
    │   ├── tsne
    │   │   └── gene_expression_2_components
    │   │       └── projection.csv
    │   └── umap
    │       └── gene_expression_2_components
    │           └── projection.csv
    ├── cloupe.cloupe
    ├── filtered_feature_bc_matrix
    │   ├── barcodes.tsv.gz
    │   ├── features.tsv.gz
    │   └── matrix.mtx.gz
    ├── filtered_feature_bc_matrix.h5
    ├── metrics_summary.csv
    ├── molecule_info.h5
    ├── possorted_genome_bam.bam
    ├── possorted_genome_bam.bam.bai
    ├── raw_feature_bc_matrix
    │   ├── barcodes.tsv.gz
    │   ├── features.tsv.gz
    │   └── matrix.mtx.gz
    ├── raw_feature_bc_matrix.h5
    └── web_summary.html
    _perf
    _perf._truncated_
    SC_RNA_COUNTER_CS/
    ├── Pipeline output
    _sitecheck
    _tags
    _timestamp
    _uuid
    _vdrkill
    _versions

Filtering cells

Cell Ranger 3.0 introduced and improved cell-calling algorithm that is better able to identify populations of low RNA content cells, especially when low RNA content cells are mixed into a population of high RNA content cells. For example, tumor samples often contain large tumor cells mixed with smaller tumor infiltrating lymphocytes (TIL) and researchers may be particularly interested in the TIL population. The new algorithm is based on the EmptyDrops method (Lun et al., 2019).

The algorithm has two key steps:

1. It uses a cutoff based on total UMI counts of each GEM barcode to identify cells. This step identifies the primary mode of high RNA content cells.
2. Then the algorithm uses the RNA profile of each remaining barcode to determine if it is an “empty” or a cell containing partition. This second step captures low RNA content cells whose total UMI counts may be similar to empty GEMs.

In the first step, the original cell calling algorithm is used to identify the primary mode of high RNA content cells, using a cutoff based on the total UMI count for each barcode. Cell Ranger may take as input the expected number of recovered cells, N (see –expect-cells). Let m be the 99th percentile of the top N barcodes by total UMI counts. All barcodes whose total UMI counts exceed m/10 are called as cells in the first pass.

In the second step, a set of barcodes with low UMI counts that likely represent ‘empty’ GEM partitions is selected. A model of the RNA profile of selected barcodes is created. This model, called the background model, is a multinomial distribution over genes. It uses Simple Good-Turing smoothing to provide a non-zero model estimate for genes that were not observed in the representative empty GEM set. Finally, the RNA profile of each barcode not called as a cell in the first step is compared to the background model. Barcodes whose RNA profile strongly disagrees with the background model are added to the set of positive cell calls. This second step identifies cells that are clearly distinguishable from the profile of empty GEMs, even though they may have much lower RNA content than the largest cells in the experiment.

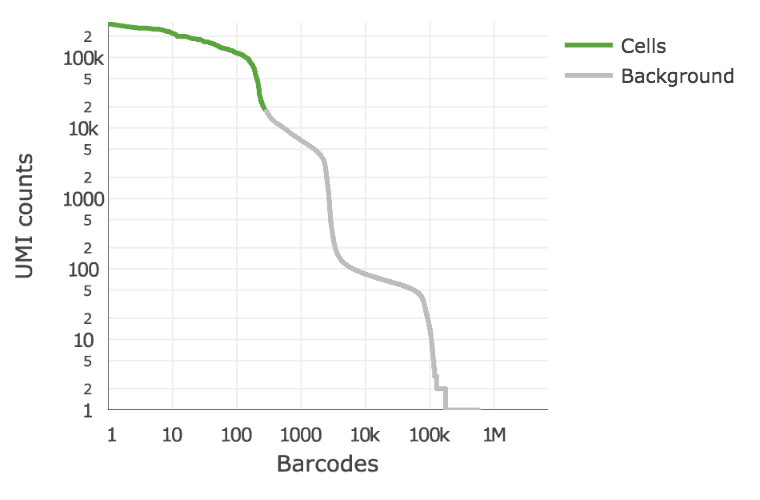

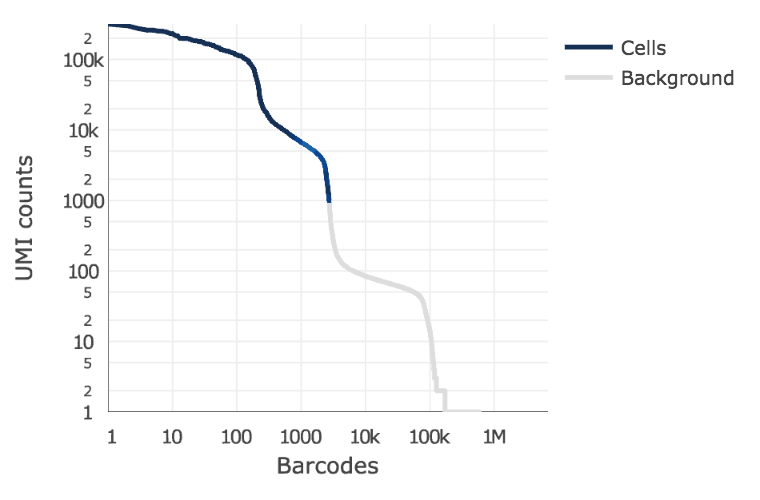

Below is an example of a challenging cell-calling scenario where 300 high RNA content 293T cells are mixed with 2000 low RNA content PBMC cells. On the left is the cell calling result with the cell calling algorithm prior to Cell Ranger 3.0 and on the right is the current Cell Ranger 3.0 result. You can see that low RNA content cells are successfully identified by the new algorithm.

Matrix output

Each of these folders contains three files needed to completely describe each gene x cell matrix:

• matrix.mtx.gz
• features.tsv.gz
• barcode.tsv.gz

Matrix HDF5 output

HDF5 is a file format designed to preserve a hierarchical, filesystem-like organization of large amounts of data:

(root)
└── matrix [HDF5 group]
    ├── barcodes
    ├── data
    ├── indices
    ├── indptr
    ├── shape
    └── features [HDF5 group]
        ├─ _all_tag_keys
        ├─ target_sets [for Targeted Gene Expression]
        │   └─ [target set name]
        ├─ feature_type
        ├─ genome
        ├─ id
        ├─ name
        ├─ pattern [Feature Barcode only]
        ├─ read [Feature Barcode only]
        └─ sequence [Feature Barcode only]

The result is a single file completely describing the gene x cell matrix, which can be read into R or Python for downstream processing.

The hdf5 has a number of advantages we’ll talk more about when we get into data analysis.

BAM output

10x Chromium cellular and molecular barcode information for each read is stored as TAG fields:

The following TAG fields are present if a read maps to the genome and overlaps an exon by at least one base pair. A read may align to multiple transcripts and genes, but it is only considered confidently mapped to the transcriptome it if mapped to a single gene.

The bits to the extra alignment flags are interpreted as follows:

• 1 - The read is confidently mapped to a feature
• 2 - The read maps to a feature that the majority of other reads with this UMI did not
• 4 - This read pair maps to a discordant pair of genes, and is not treated as a UMI count
• 8 - This read is representative for a transcriptomic molecule and can be treated as a UMI count
• 16 - This read maps to exactly one feature, and is identical to bit 8 for transcriptomic reads. Notably, this bit is set when a feature barcode read is treated as a UMI count, while bit 8 is not
• 32 - This read was removed by targeted UMI filtering.

The following are feature barcoding TAG fields which are not aligned to the genome, but processed by the Feature Barcoding read processor. The BAM file will contain unaligned records for these reads, with the following tags representing the Feature Barcode sequence extracted from the read, and the feature reference it was matched to, if any. The BAM read sequence will contain all the bases outside of the cell barcode and UMI regions. V3 ONLY.

An example read

Cell Ranger Version 6

A01102:107:HHM5TDSXY:3:1128:6659:34601	147	chr1	1014050	255	151M	=	1013467	-734	TCGGTGTCAGAGCTGAAGGCGCAGATCACCCAGAAGATCGGCGTGCACGCCTTCCAGCAGCGTCTGGCTGTCCACCCGAGCGGTGTGGCGCTGCAGGACAGGGTCCCCCTTGCCAGCCAGGGCCTGGGCCCCGGCAGCACGGTCCTGCTGG	FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF	NH:i:1	HI:i:1	AS:i:249	nM:i:2	RG:Z:PBMC2sm:0:1:HHM5TDSXY:3	TX:Z:ENST00000624652,+271,151M;ENST00000624697,+296,151M;ENST00000649529,+146,151M	GX:Z:ENSG00000187608	GN:Z:ISG15	fx:Z:ENSG00000187608	RE:A:E	xf:i:25	CR:Z:CCGTGGAGTCAGAGGT	CY:Z:FFFFFF:FFFFFFFFF	CB:Z:CCGTGGAGTCAGAGGT-1	UR:Z:CCACGGGGAT	UY:Z:FFFFFFFFFF	UB:Z:CCACGGGGAT

10X Genomics sample report

A summary of the alignment and assignment of reads to cells and genes is present in the metrics_summary.csv.

10X genomics html reports

Cell Ranger does produce a more readable HTML report with the same statistics and some “analysis”.

Cell Ranger V8 web summary GEX

Download the workshop sample data (2 samples), the instructor will provide the download link.

Exercises

1. Explore the folder 01-CellRanger. Is it the whole output tree described above?
2. Which output folders/files contain the expression matrix?
3. Review the metrics_summary.csv file. What was the total number of reads in this sample?
4. Use `gunzip` and `head` to look at the first few lines of the files under raw_feature_bc_matrix. What format is the matrix file in? How would you read the data. ---
